Quilted the first domestic independent pattern, the use of pneumatic thread trimming technology, thread cutting cloth fast.
details

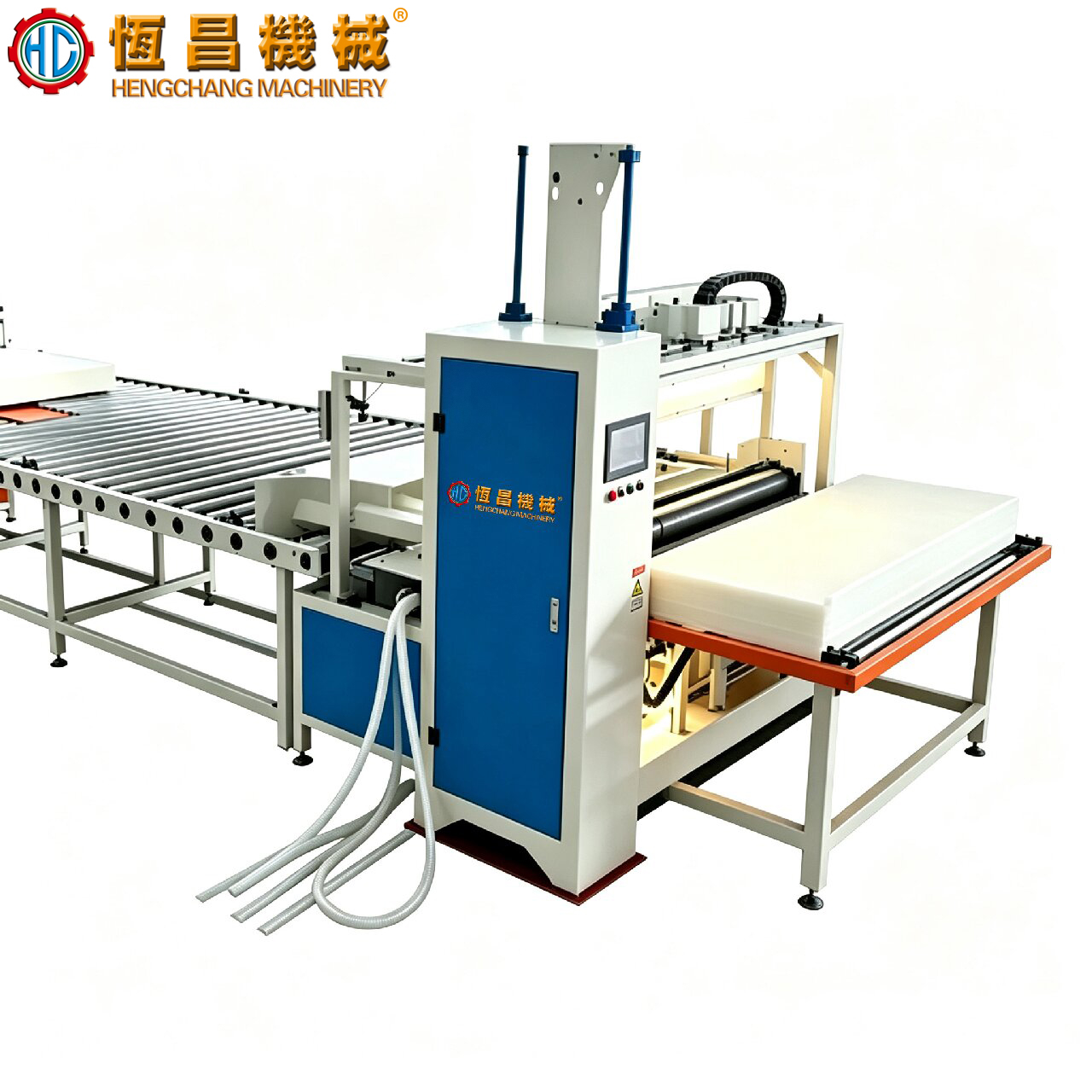

HC-3DQ is a heavy-duty 3D quilting machine specially developed for thick sponge and mattress raw materials.
1. Equipped with specially made high-strength grinding needles (5-8mm diameter, 28mm length) and a large shuttle (120mm length, 33.5mm thickness) that can wind over 4 meters of thread;
2. Stitch length is adjustable, with optional edge trimming and cross cutting functions for integrated processing;
3. Maximum sewing width of 2200mm, sewing stroke 300mm, 380V/33kW power supply, suitable for continuous high-load production;
4 Widely used in mattress manufacturing, foam processing, upholstered furniture, and other industries requiring thick material quilting.

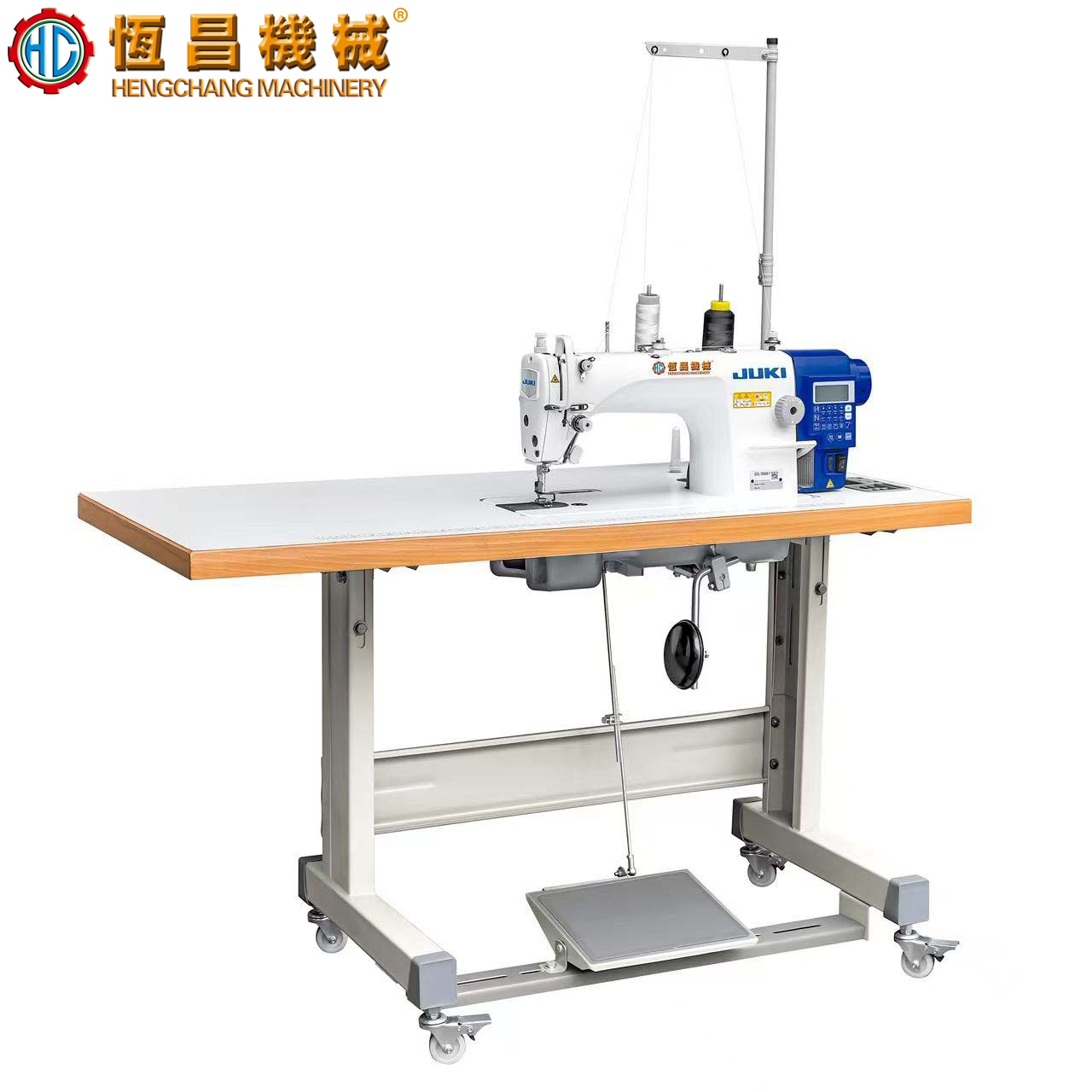

HC-SM is a direct-drive industrial flat sewing machine designed for general fabric sewing applications.
1. Built with Juki DDL-7000A sewing head, delivering reliable and consistent performance.
2. Easy operation, low noise and stable performance, suitable for long working hours.
3. Max sewing speed 5500 sti/min, stitch length up to 5mm, knee-lift presser foot height up to 13mm, compatible with DPX5 needles.
4. Widely used in garment manufacturing, mattress production, upholstery and other general textile sewing processes.

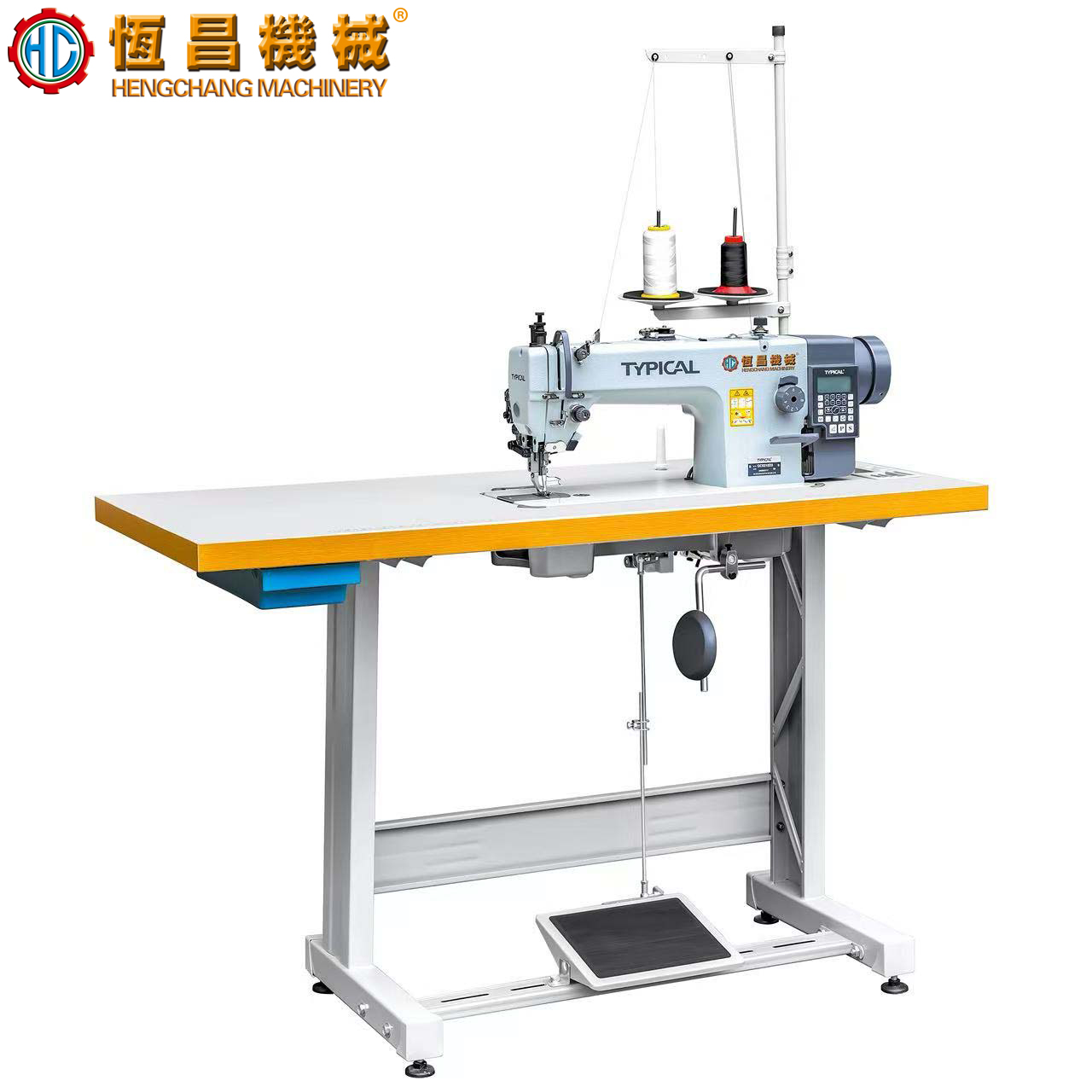

HC-CBM is a computer-controlled synchronous sewing machine designed for mattress and thick fabric binding and sewing.
1. Automatic thread trimming with optional two or three stitches automatic reverse sewing at the start;
2. Adopts synchronous top and bottom feed mechanism, equipped with a large horizontal hook for stable thick fabric feeding;
3. Max speed 2000RPM, single-phase 220V 50HZ power supply, suitable for continuous production;
4. Widely used in mattress manufacturing, upholstered furniture, automotive interiors and other thick fabric sewing processes.

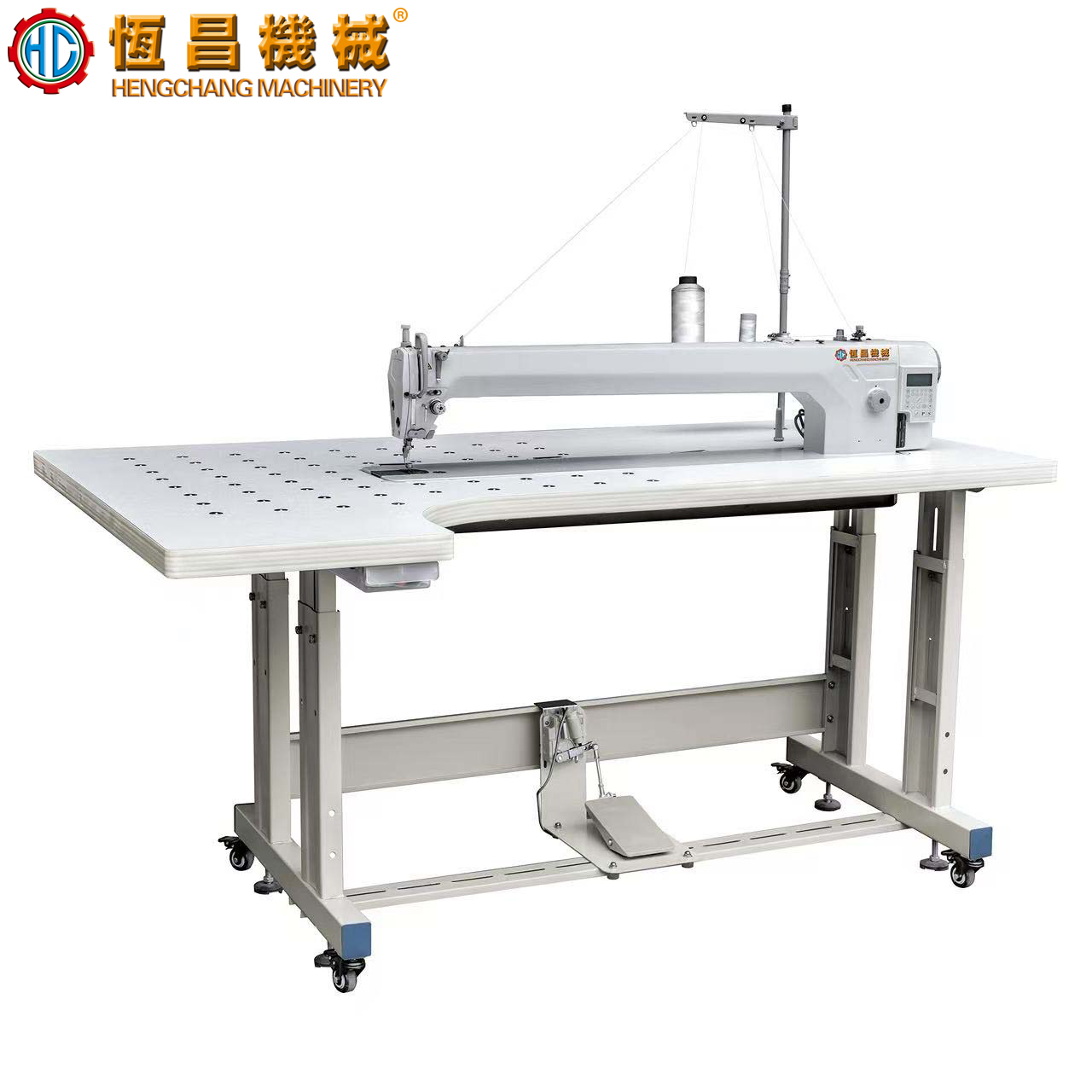

A dedicated long-arm sewing machine developed for mattress repairing, patching and decorative stitching.
1. Built with a large-space flat sewing head, with automatic thread cutting and presser foot lifting functions;
2. 860mm long arm design, covering large fabric areas with ease;
3. Sewing speed 100-1800 RPM, sewing thickness 10-50mm, low noise and stable operation.

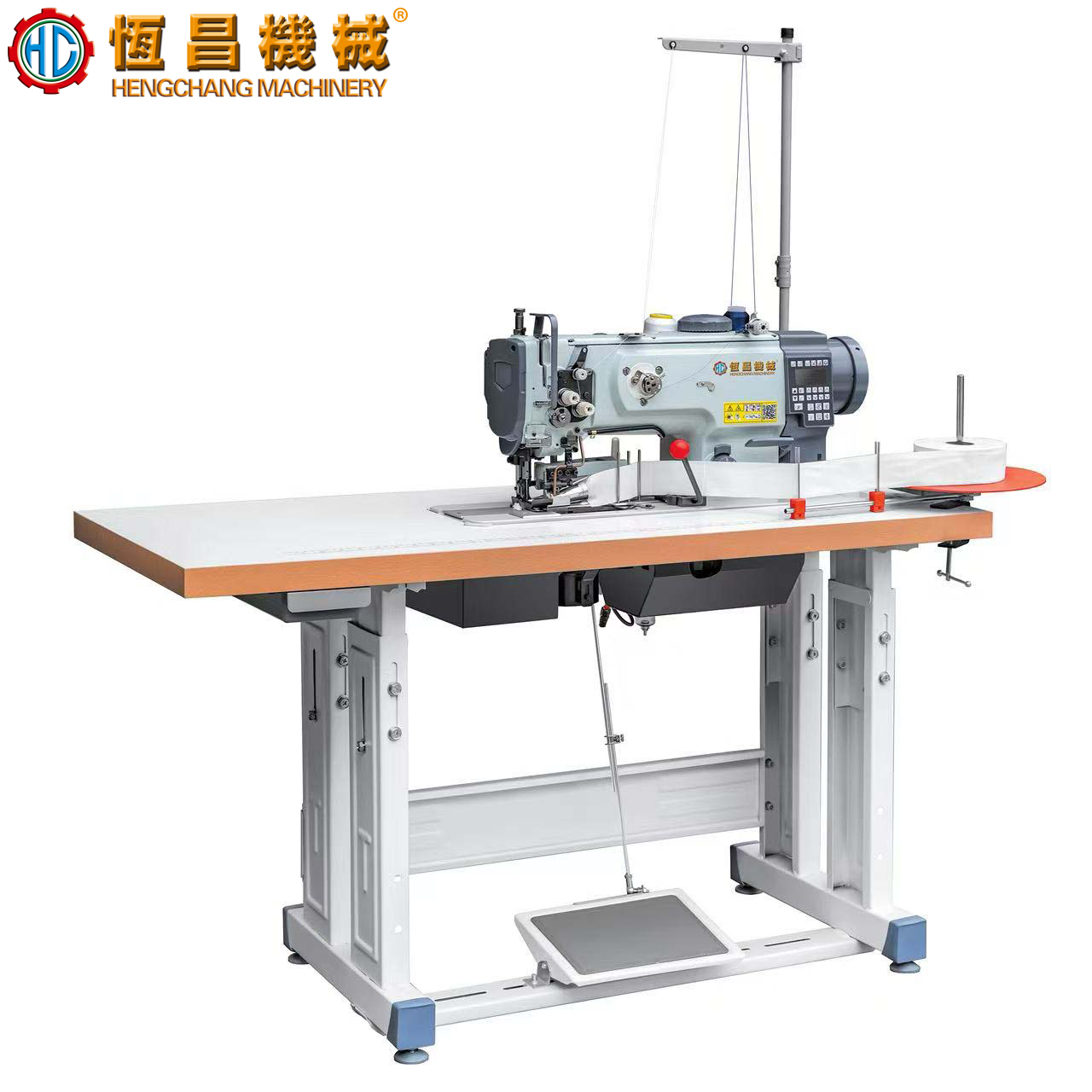

HC-BM Binding Machine is specially designed for thick materials such as mattresses and sofas.
1. Direct-drive integrated feed, combining automatic trimming and binding into one process for higher efficiency.
2. Maximum binding speed of 2500 RPM, handling thicknesses from 10-60mm with stable operation.
3. Widely used for edge binding of mattresses, sofa cushions, automotive interiors and other thick fabric products.
HC-DB3000 fully automatic double-beam double-head single-needle quilting machine adopts advanced dual-beam double-stitch head design.
1. with high-speed stable servo control system, low noise and high precision sewing performance;
2. Equipped with automatic material clamping, air-source lubrication system and 3x larger bobbin, it supports more than 3000 customizable patterns;
3. The equipment is suitable for quilting processing of mattresses, bed linens, home textiles and furniture upholstery fabrics, featuring efficient and stable operation, high production speed and long-term durable operation, which greatly improves the production efficiency of bedding and mattress processing factories.
30L glue machine, suitable for various gluing scenarios, with precise temperature control and good heat dissipation and insulation.
1. 30L glue machine are high-capacity hot melt adhesive equipment specially designed for the mattress, home textiles, packaging, and other industries;
2. Equipped with an independent high-precision temperature control system, with a temperature control accuracy of up to ±1°C, and adopting superior heat dissipation and insulation design to ensure the equipment is stable and durable.
The hand sewing machine is a specialized sewing device designed for the luggage, mattress, and home textile industries.
1. Equipped with a high-speed shuttleless multi-needle head, it operates stably and reliably, enabling fully automatic sewing operations;
2. Suitable for various scenarios such as handbag straps, mattress handles, and webbing reinforcement sewing;
3. Significantly improve production efficiency and reduce labor costs, making it an ideal supporting equipment for industrial sewing production lines.
Faux tape edge sewing machine, specialized equipment for fake three-sided mattress edging.
1. Using a high-speed shuttleless machine head, it operates stably and is easy to use, with a working speed of up to 6m/min;
2. The stitching is smooth and firm, suitable for edge-seaming operations of various types of mattresses, helping mattress production efficiently complete the edging process.
The HC-DSH is specially designed for mattress fabric edging processes.
1. Equipped with direct-driven servo motor to control the synchronous drive of head;
2. Adjustable fabric expanding device and rolling mechanism can automatically cut the cloth unnecessary, for the side-lock, thus saving more time;
3. Automatic disconnection detection, automatic no-material detection;
4. Flexibllity width adjustment;
5. Automatic vacuum cleaner.
The four-head dotting machine is specially used for edge dotting operations on mattresses.
1. The four machine heads can work synchronously or independently;
2. 16-axis fully automatic control, precise feeding, efficient and stable, suitable for mattress edge production requirements.
