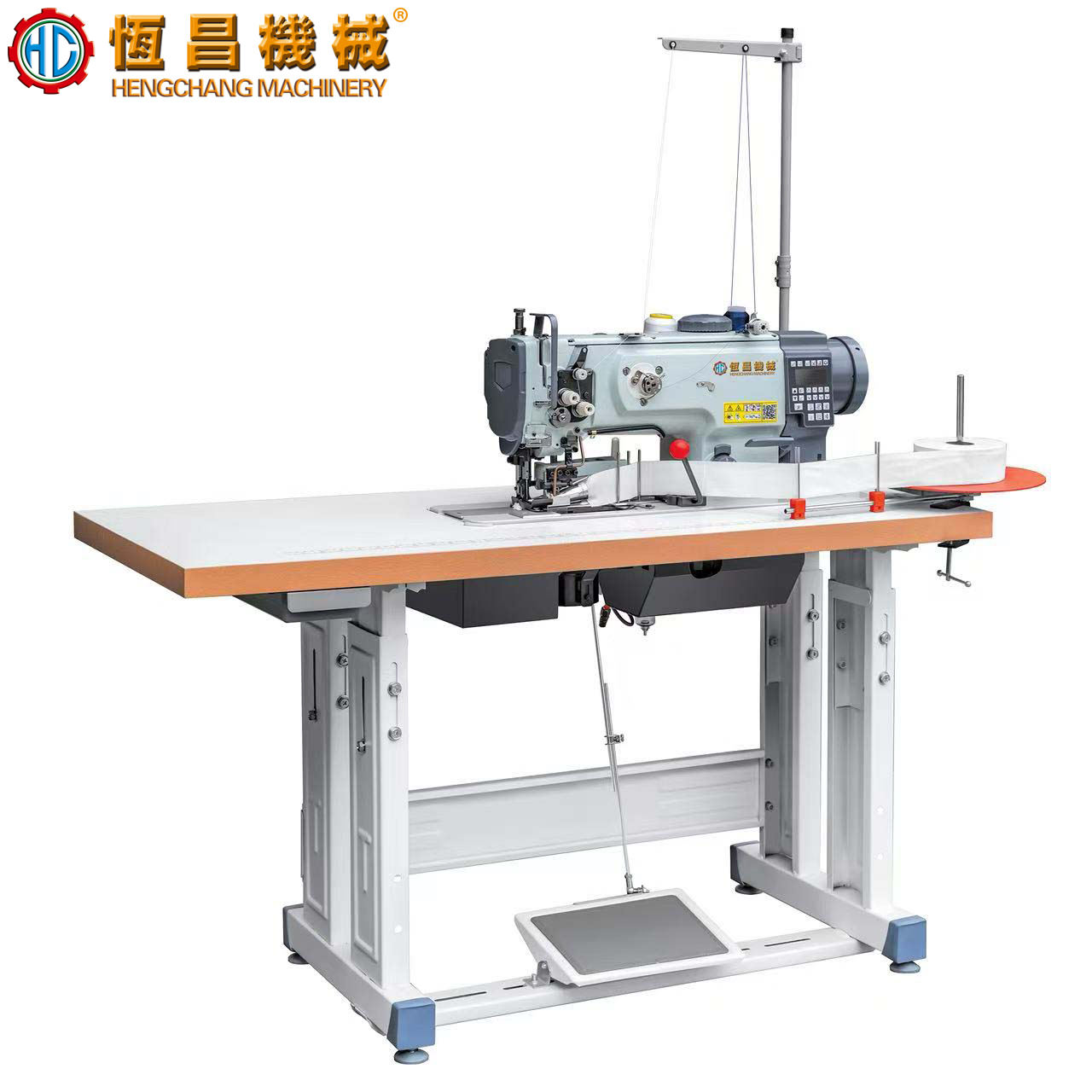

HC-BM Binding Machine

Introduce：
HC-BM Binding Machine is specially designed for thick materials such as mattresses and sofas.

1. Direct-drive integrated feed, combining automatic trimming and binding into one process for higher efficiency.

2. Maximum binding speed of 2500 RPM, handling thicknesses from 10-60mm with stable operation.

3. Widely used for edge binding of mattresses, sofa cushions, automotive interiors and other thick fabric products.

Customized

Details

Functional Advantages

1. Direct-drive , integrated feed, automatic trimming and binding a11-in one machine;
2. Uses a vertical rotating hook system, with freely adjustable presser foot interaction;
3. Side cutter mechanism ensure synchronization between feeding and binding.

Function Parameter

Sewing Head	HengChang
Binding Speed	2,500RPM
Binding Thickness	10-60mm
Needle Bar Stroke	≤36mm
Presser Foot Height	16mm
Stitch	2-7mm
Needle Size	DPX17 18#
Voltage	220V 50HZ/60HZ
Power	750W

Application Range

The HC-BM binding machine is mainly used for edge binding of mattresses, sofa cushions, automotive interiors and other thick fabric products in the furniture and textile industries.
