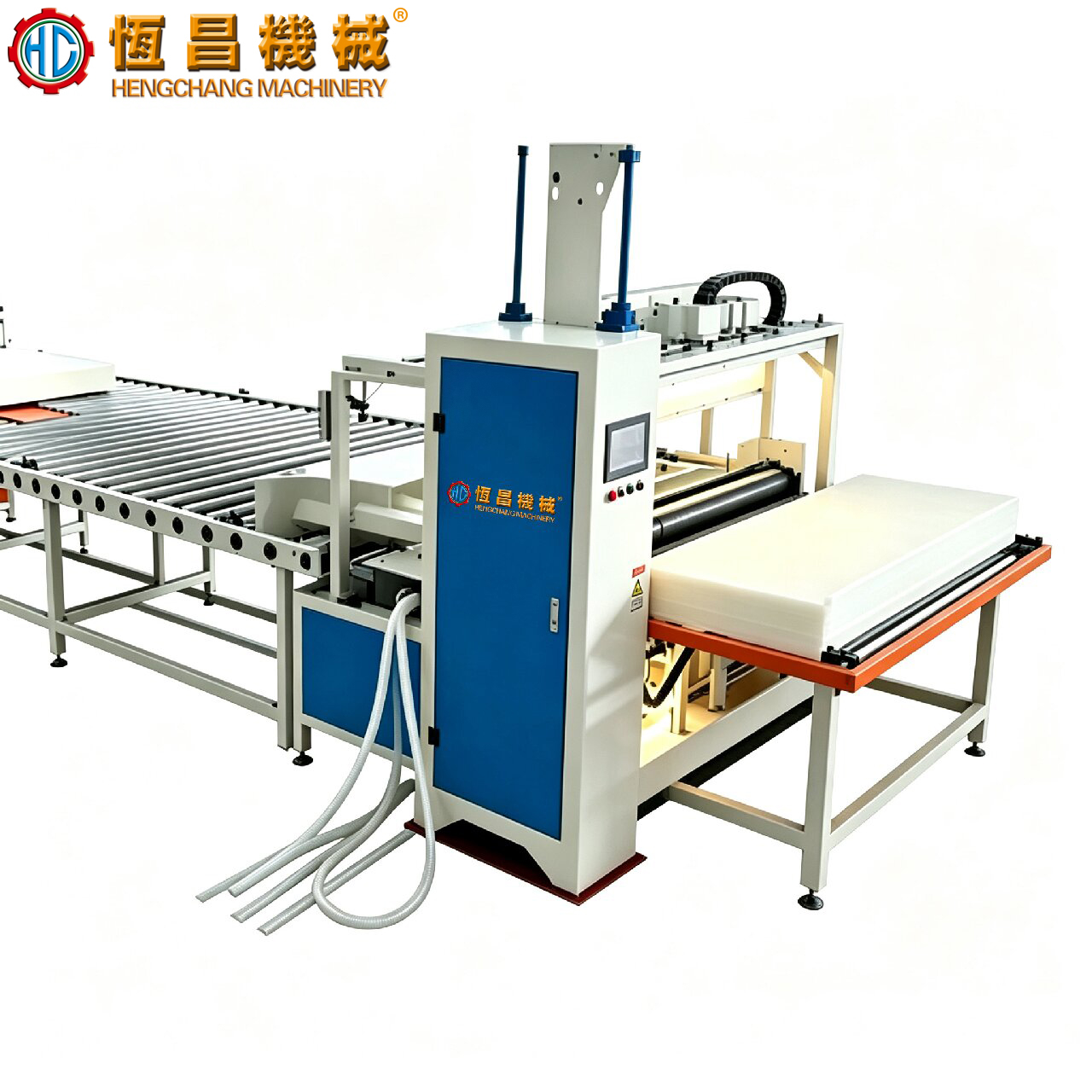

HC-3DQ Heavy Material 3D Quilting Machine

Introduce：
HC-3DQ is a heavy-duty 3D quilting machine specially developed for thick sponge and mattress raw materials.

1. Equipped with specially made high-strength grinding needles (5-8mm diameter, 28mm length) and a large shuttle (120mm length, 33.5mm thickness) that can wind over 4 meters of thread;

2. Stitch length is adjustable, with optional edge trimming and cross cutting functions for integrated processing;

3. Maximum sewing width of 2200mm, sewing stroke 300mm, 380V/33kW power supply, suitable for continuous high-load production;

4 Widely used in mattress manufacturing, foam processing, upholstered furniture, and other industries requiring thick material quilting.

Customized

Details

Functional Advantages

1. Uses specially made high-strength grinding needles with a diameter of 5-8mm and a needle length of 28mm;
2. Shuttle length 120mm, thickness 33.5mm, can wind over 4 meters of thread;
3. The stitch length is adjustable, and optional edge trimming and cross cutting are available.

Function Parameter

Max. Sewing Width	2,200mm
Sewing stroke	300mm
Overall dimensions	240,000 x 3,200 x 2,600mm
Weight	8000kg
Voltage	380V/33kW

Application Range

The HC-3DQ heavy material 3D quilting machine is widely used in mattress manufacturing, foam processing, and upholstered furniture industries for quilting thick sponge and raw materials.
