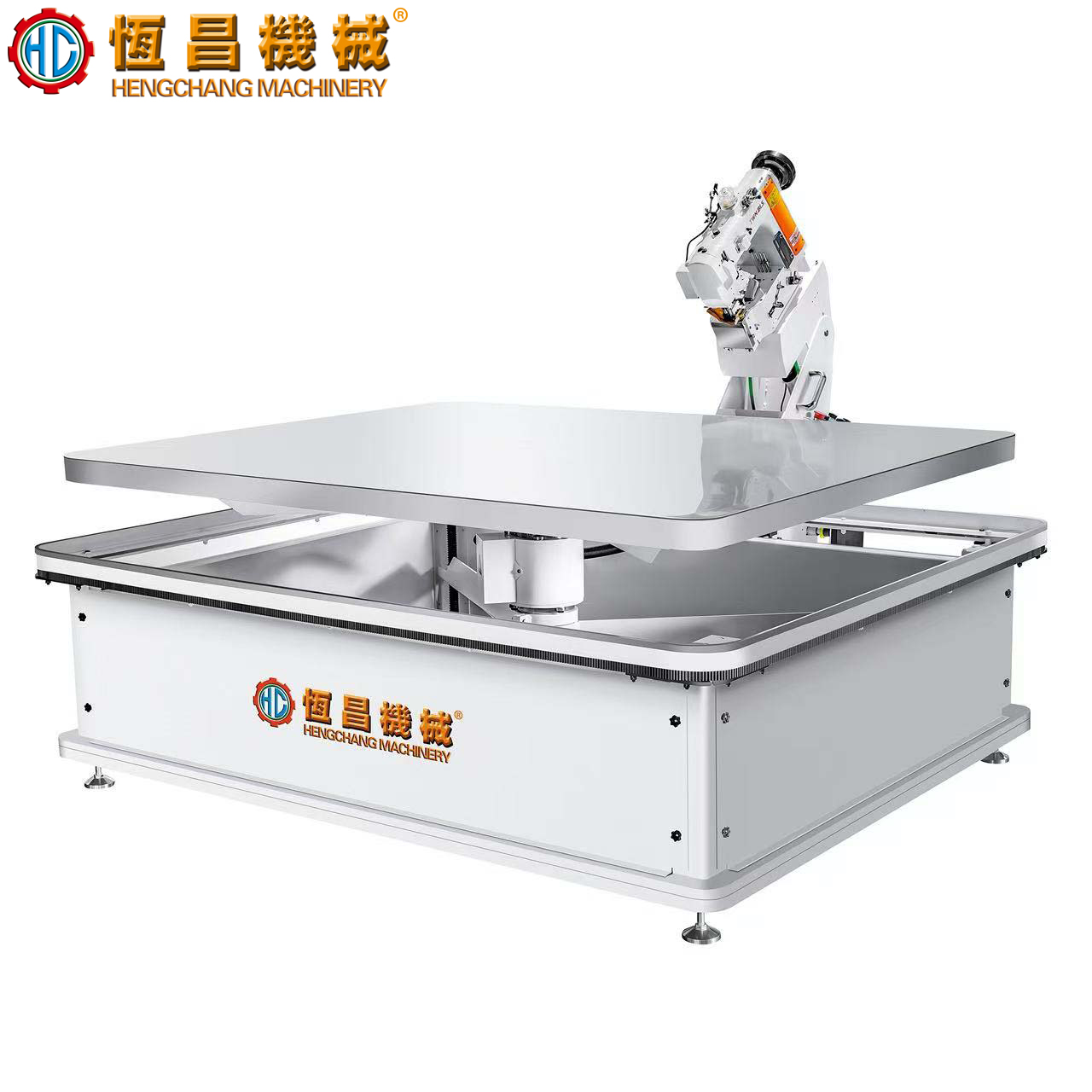

HC-TE Mattress Tape Edge Machine

Introduce：
HC-TE Mattress Tape Edge Machine Special Function:

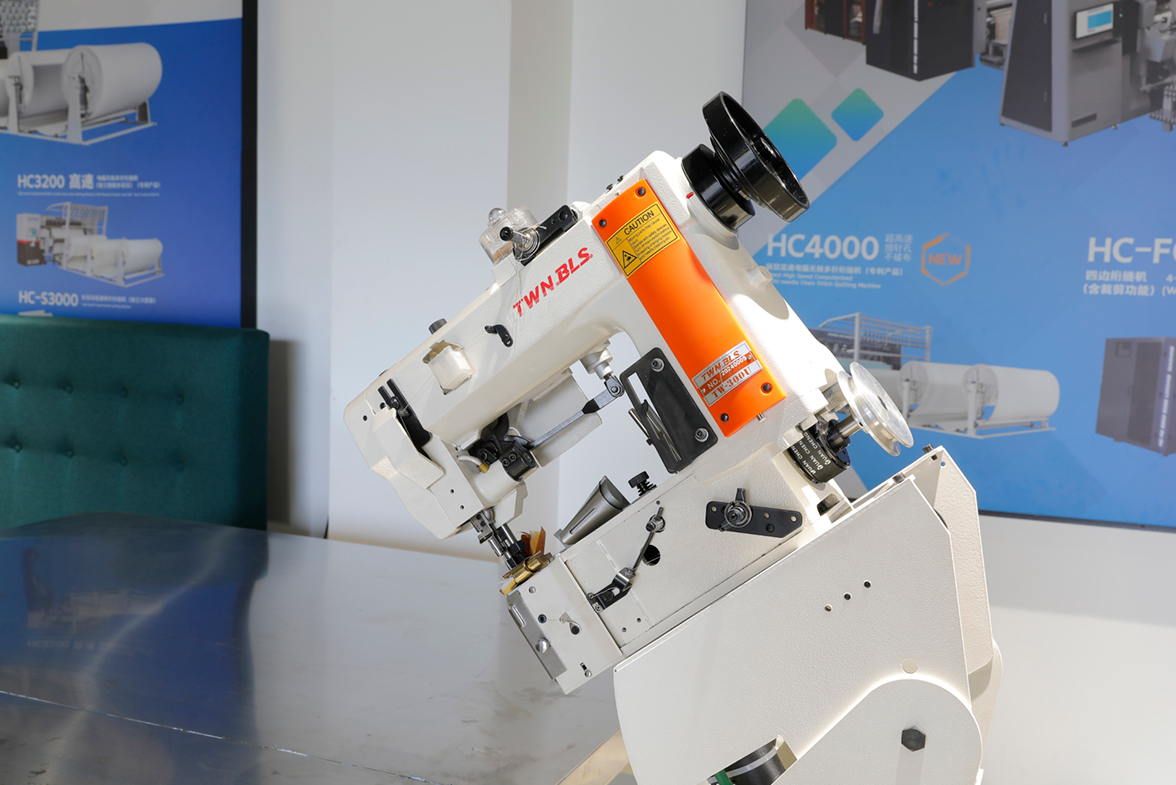

Advanced chain stitch sewing head;
Auto-lifting table, hand-controlled tilting of sewing head;
Variable speed for moving of carriage and sewing;
Straigh, even and attractive seam;
Low noise, small vibration, stable performance.

Customized

Details

Functional Advantages

HC-TE Mattress Tape Edge Machine Special Function:
Advanced chain stitch sewing head;
Auto-lifting table, hand-controlled tilting of sewing head;
Variable speed for moving of carriage and sewing;
Straigh, even and attractive seam;
Low noise, small vibration, stable performance.

Function Parameter

Table Size	1920×1500mm
Dimension	2020×1600×820mm
Max. Sewing Angle	40°
Table Lifting Stroke	0-280mm
Voltage	380V 50HZ
Weight	480kg

Grouped Equipment

HC4000 quiltging machine

CPU controlled press plate height for different quilting thickness;

Digital display press roller height;

Coupling connection between motor and rollers,making the transmission more compact;

Unique automatic lubrication system for retainer plate.

Application Range

This tape edge machine is for mattress factories looking for an equipment upgrade. It comes with a rolling table unit onto which the mattress is placed, a sewing unit for a neat and sturdy tape edge, an arm to turn the mattress 90˚ after one side is done, and for the tape edge to be neatly attached along the corners, and finally a flipping mechanism to turn the mattress completely over once one side is complete.

HC-TE mattress tape edge machine application
