1, the introduction of new imported industrial quilting head, stable quality, reliable performance, the maximum speed up to 3000RPM;

2, Supporting industrial large rotary hook, both automatic break detection and step-by-step quilting embroidery function, pneumatic loose thread trimming precision;
3, back off quilted, presser foot height can be adjusted according to the thickness of the material;
4, powerful memory computing computer carrier, can accurately quilted a variety of complex graphics, but also any point of quilting, even intermittent boot can also guarantee the continuity of the pattern quilting;
5, support for 360-degree independent quilting quilting and rotating quilting; can store up to more than 100,000 flowers;
6, the system can be compatible with all quilting file formats and formatting systems on the market;
7, with on-duty production count, total output count, pattern effect display, processing trajectory display, automatic lift needle, resetting, reinforcing quilting and other functions;
8, new full-closed-loop angle correction function, back-off parameter correction function, corner speed quilting function;
9, seven-axis servo motor control by Japan's high-power, high precision, small noise vibration, accurate and stable operation;
10, an upgraded version of automatic clamping, feeding pull easy operation;
11, Improve the cutting function, cross-cutting and trimming more accurate and error-free;
12, special left head design, independent patented technology, head length is short.






Quilt width	≤2400mm
Quilt thickness	≤80mm
Needle size	DP ×17 21#/22#/23#
Stitch	(2-6)mm
Rotating speed of needle	2000RPM
Production speed	40-120 m/h
Production speed	(40-120)m/h
Power	8.8kw
Voltage	3-Phase,380V,50Hz/ 3-Phase,220V,50Hz
Gross weight	4500Kg
Size(L × W × H)	10000 × 4500 × 1600mm

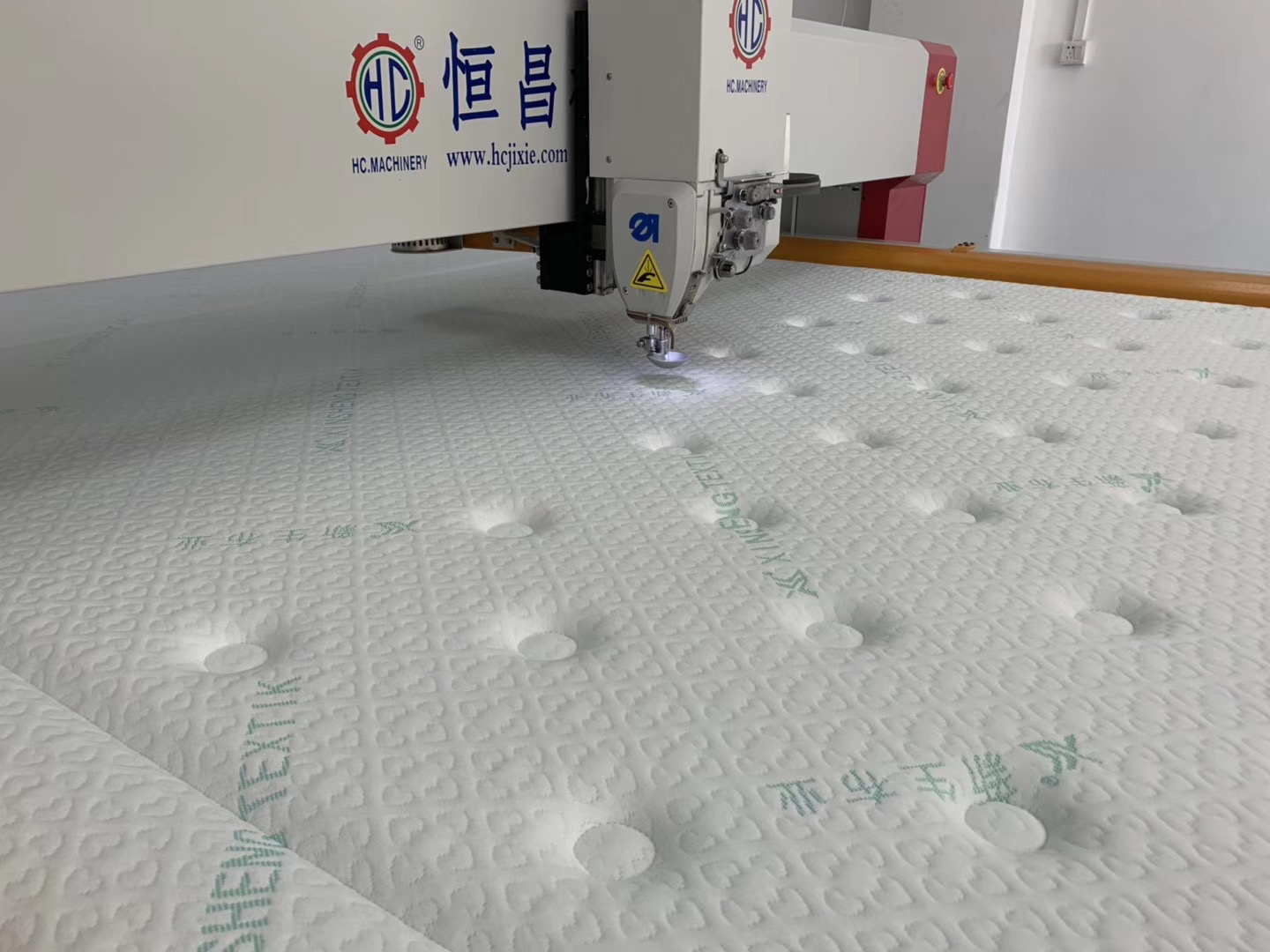

Imported large bobbin Imported quilting machine head         Panasonic servo control           New computer control system





Quilted senior mattress fabrics, bedding, home decoration a variety of tricks.
