HC3300 Latest High Speed Computerized Multi-needle Chain Quilting Machine(Optional Cutting Device)

Introduce：
HC-3300 New Model Computerized Shuttleless Multi-Needle Quilting Machine (Optional with Knife Slitting).

1. The electrical box and machine are integrated, simplifying the installation process; it can start by connecting to the main power;

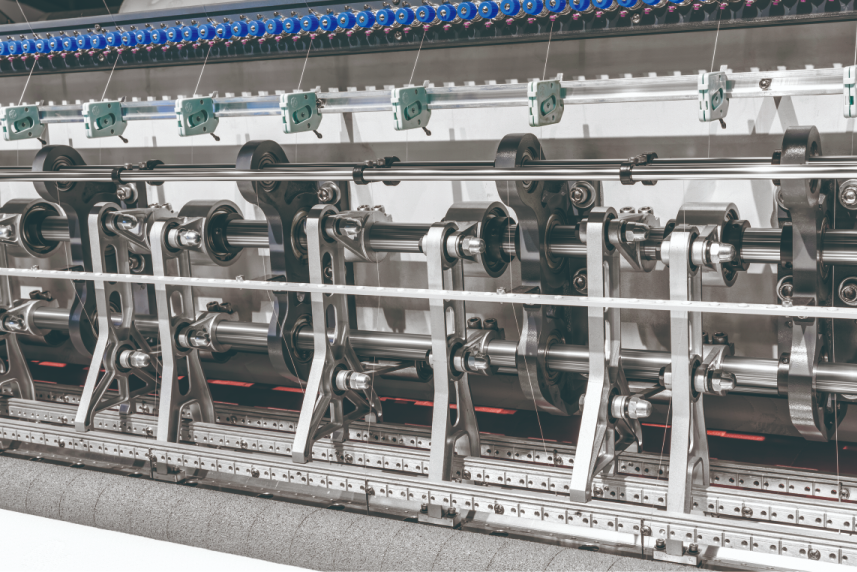

2. The needle bed presser bar rod uses dual-arm connection;

3. The Y-axis rotation is changed to a worm gear reduction gearbox, and the X-axis uses a screw with real linear guide rail assistance;

4. The moving frame hopper is changed to dual linear guides.

Customized

Details

Functional Advantages

1、The overall length of the machine is shortened and the body is more compact, which can reduce the occupied area;
2、The improment of Y-axis makes the machine transmission more compact and faster response, so that the pattern is not easy to deform;
3、The lates upgrade of the hopper bracket, adding double linear guide, more stable in the process of quilting heavy materials;
4、Reinforced machine, four-guide slide, machine is less vibration when in high-speed operation;
5、Pressure plate stroke adaptive stroke adaptive, quilting different thickness materials and do not need to be adjusted frequently.

Function Parameter

Size(LWH)	4,410x1,633x2,239mm
Rotation Speed	600-1,300RPM
Production Speed	80-330m/h
Quilting Width	2,450mm
Quilting Thickness	≤80mm
Stitch	2-7mm
Needle Size	130/21、140/22、160/23、180/24
Needle Space	25.4mm
Needle Arrangement	(50.8, 76.2) (76.2, 76.2)
Max. Horizontal Movement	320mm
Voltage	380V/220V 50HZ/60HZ
Power	11kW
Weight	5,000kg

Grouped Equipment

The whole electrical box is integrated, easy installation;
Blade cutting(Optional cutting device);

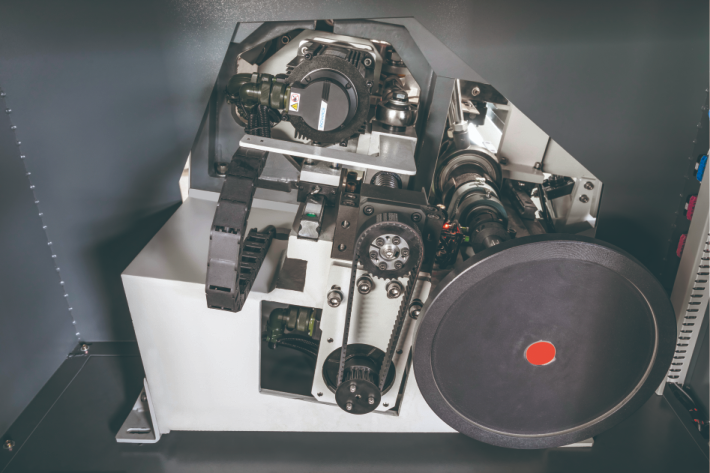

The Y-axis rotation to use turbo-reduction gear box, X-axis with screw and linear guide auxiliary;

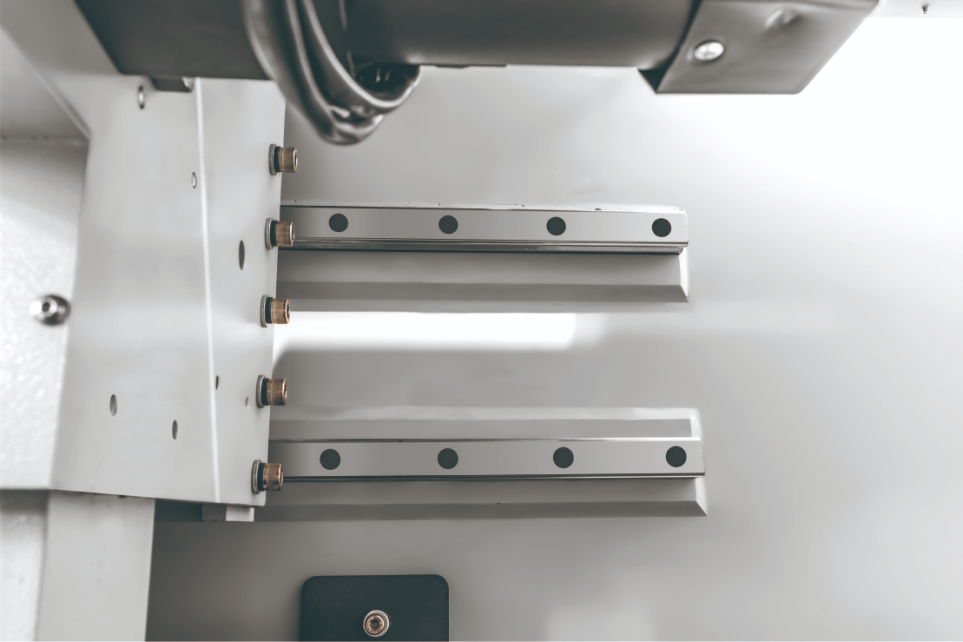

Fabric holder changed to the double linear guide.
