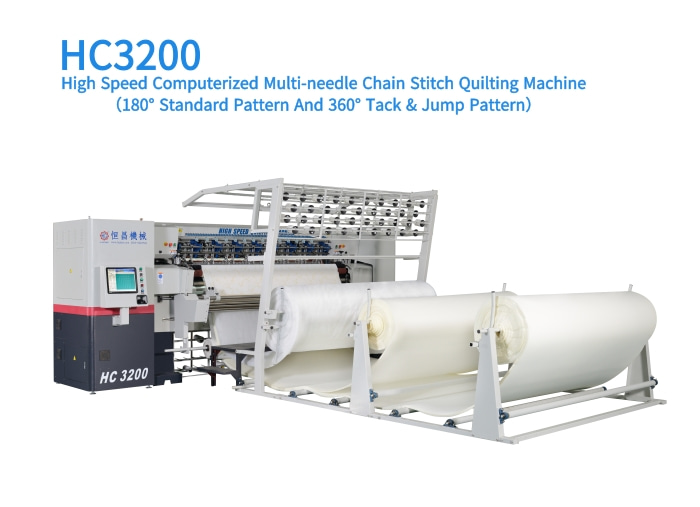

  • HC3200 new high-speed computer shuttleless quilting machine

    Quilted the first domestic independent pattern, the use of pneumatic thread trimming technology, thread cutting cloth fast.



    Functional Advantages

    Quilting machine, computer quilting machine, HC3200 quilting machine Features:
    1, the latest design pneumatic feeding institutions, easy to install, fast, smooth;
    2, integrated tilt-type body design, the overall appearance of generous, easy to operate, perfect quilted pattern;
    3, the first infrared device broken device, non-contact, reliable performance;
    4, the first domestic quilted independent pattern, the use of pneumatic thread trimming technology, thread cutting fast;
    5, the latest design enhanced arms exercise mechanism, durable, no fuel, fast speed, small vibration;
    6, different thickness of quilted fabric, the overall pressure plate can be easy to operate;
    7, perfect safety protection device
    8, a new generation of design control system, reliable performance, easy operation, high precision quilting;
    9, CAD drawing methods can be enlarged, reduced, arbitrarily modified, convenient and quick;
    10, a powerful combination of patterns (covering 360 degrees, 180 degrees pattern), can store more than 100,000 patterns
    11, running state detection and prompts, the operation of the machine at a glance;
    12, computer pattern automatic compensation function.
    Upgrade innovative features introduced:
    1, automatic adjustment of fabric thickness device can automatically adjust the pressure roller gap, flower is not easy to deformation, strong sense of three-dimensional;
    2, upgraded shock absorber hopper, to solve the heavy fabric quilted back and forth in the process of shaking problems;
    3, the new hopper solid balance system, reduce vibration and reduce noise, which will help improve the performance of the machine and stability;
    4, a special professional cloth belt system, pattern stable, smooth fabric is not easy to wrinkle and scratch;
    5, enhanced bed, four rail slider, reinforced mobile frame, high-speed machine work stable, small vibration;
    6, luxury sponge frame.

    Function Parameter

    Size (length*width*height) 5100X1500X2000(mm)
    Weight 6000kg
    Quilt width 2450mm
    Rotation speed 600-1200RPM
    Production speed 80-280m/h
    Needle size 130/21  140/22  160/23  180/24
    Needle arrangement (50.8 , 76.2 , 127)    (76.2, 76.2 , 152.4)
    Max horizonal movement 450mm
    Needle space 25.4mm
    Voltage 380V/220V  50HZ/60HZ
    Stitch size 2-7 mm
    Power 10KW
    Quilting thickness ≤80mm

    Grouped Equipment

    19-inch large LCD New enhanced double bearing pin row seat New hopper stable balance system Fabric thickness automatic adjustment device

    Application Range

    Quilted senior mattress fabrics, bedding, home decoration a variety of tricks.

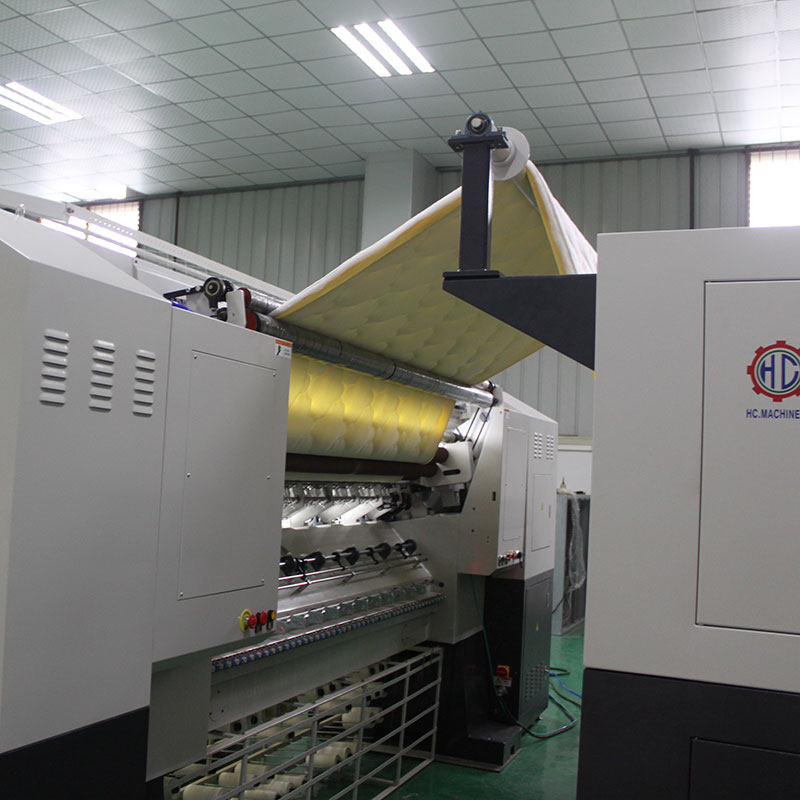

    Manufacturing Capacity
