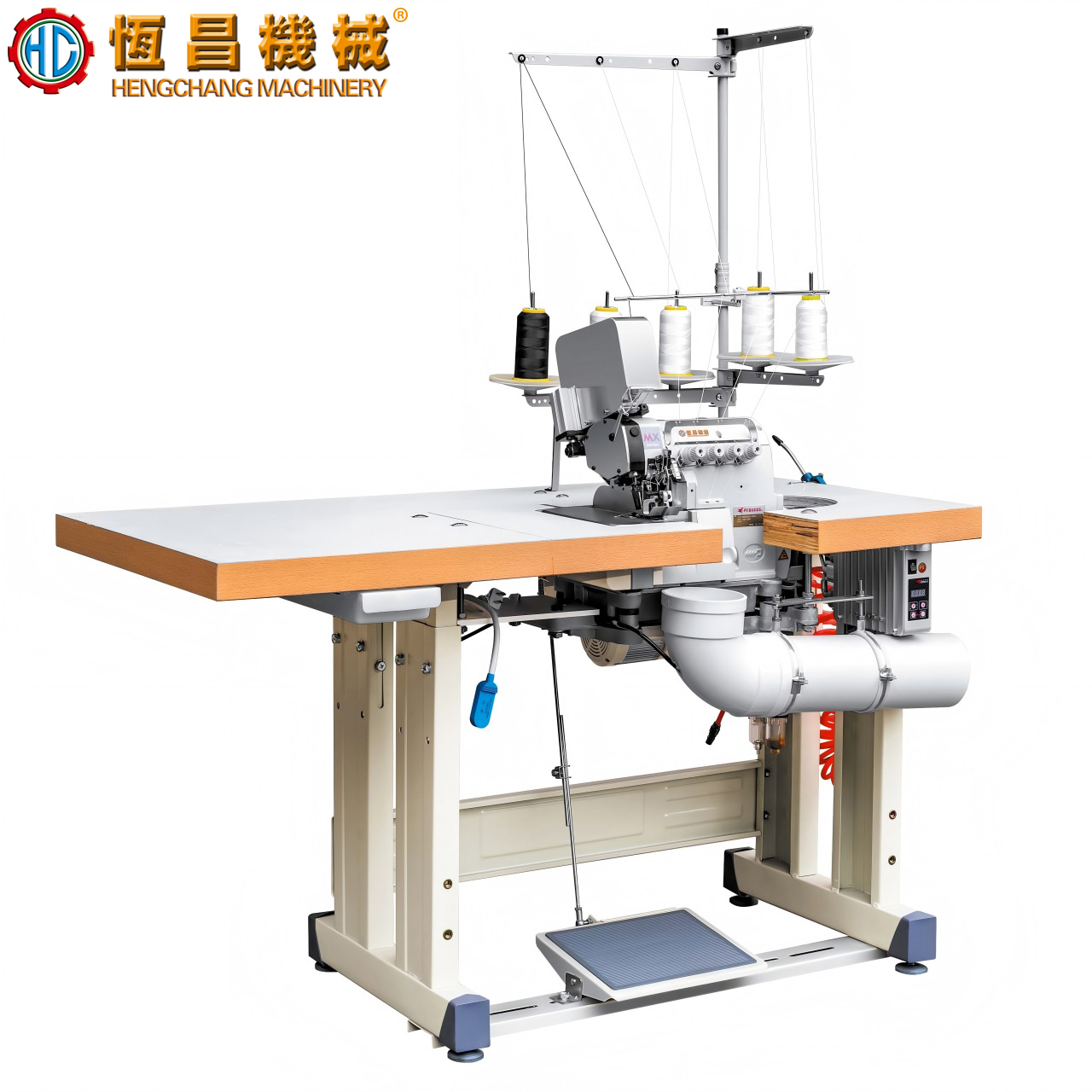

HC-FMMX Flange Machine

Introduce：
A dedicated seam-locking equipment specially designed for the mattress and home textile industries.

1. Equipped with the Pegasus MX series double-needle bar head, it adopts an upper and lower synchronous tooth feeding structure, ensuring stable operation and precise feeding;

2. This equipment is widely used for edge seaming and binding operations of mattresses, bedding and home textile products;

3. Efficient and stable, it can significantly enhance production efficiency and is an ideal complementary equipment for the mattress production line.

Customized

Details

Functional Advantages

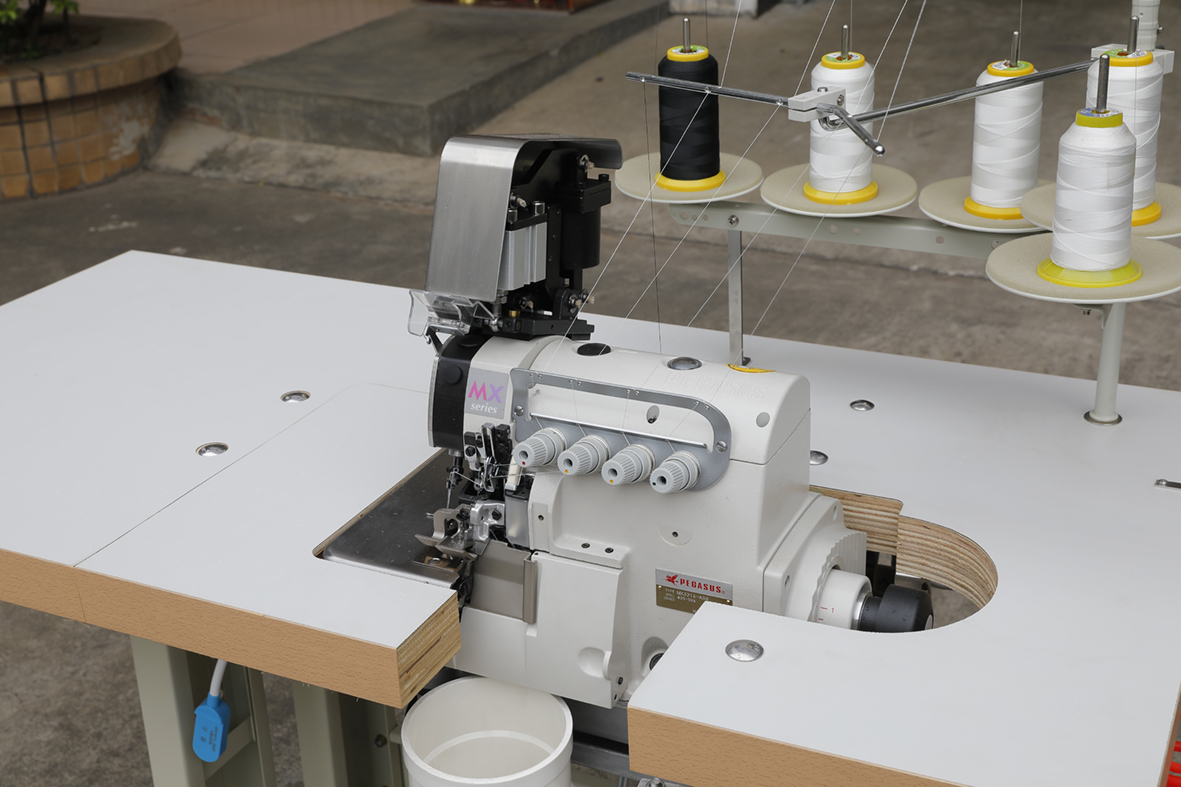

1. Features a dual needle bar head;
2. Utilizes top and bottom synchronous feed teeth;
3. Step length is adjusted via push-button control;
4. Automatic presser foot lift with electronic pneumatic control.

Function Parameter

Sewing Head	Pegasus MX Series
Flanging Speed	3,500RPm
Flanging Thickness	10-60mm
Flanging Width	≤26mm
Presser Foot Height	15mm
Stitch	1-6mm
Needle Size	DPX5 22#
Voltage	220V 50HZ/60HZ
Power	900W

Grouped Equipment

Application Range

Flang machine widely used for edge binding and edge covering operations of mattresses, bedding and home textile products. It is highly efficient and stable, significantly improving production efficiency. It is an ideal supporting equipment for the mattress production line.
