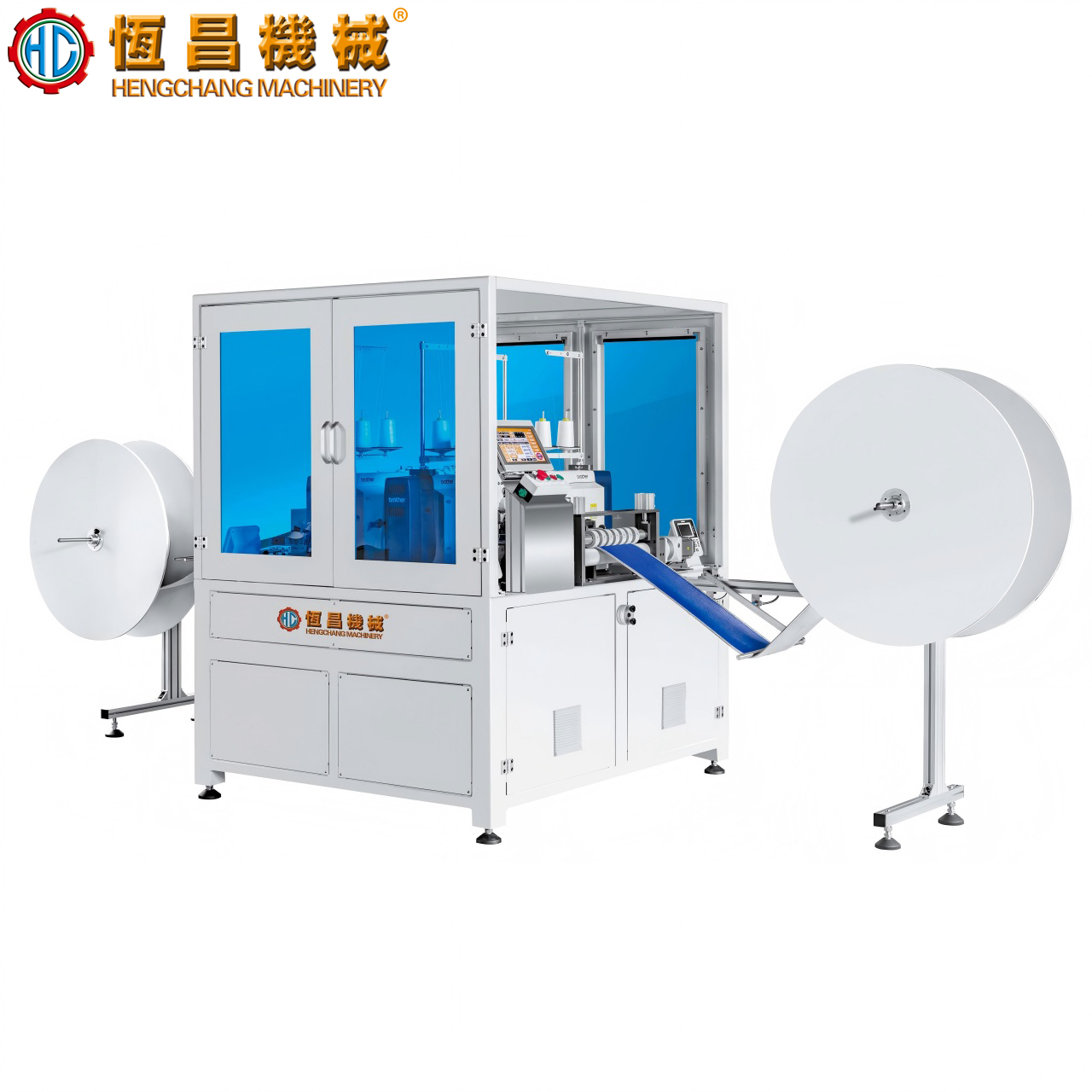

HC-FHD Four-Head Dotting Machine

Introduce：
The four-head dotting machine is specially used for edge dotting operations on mattresses.

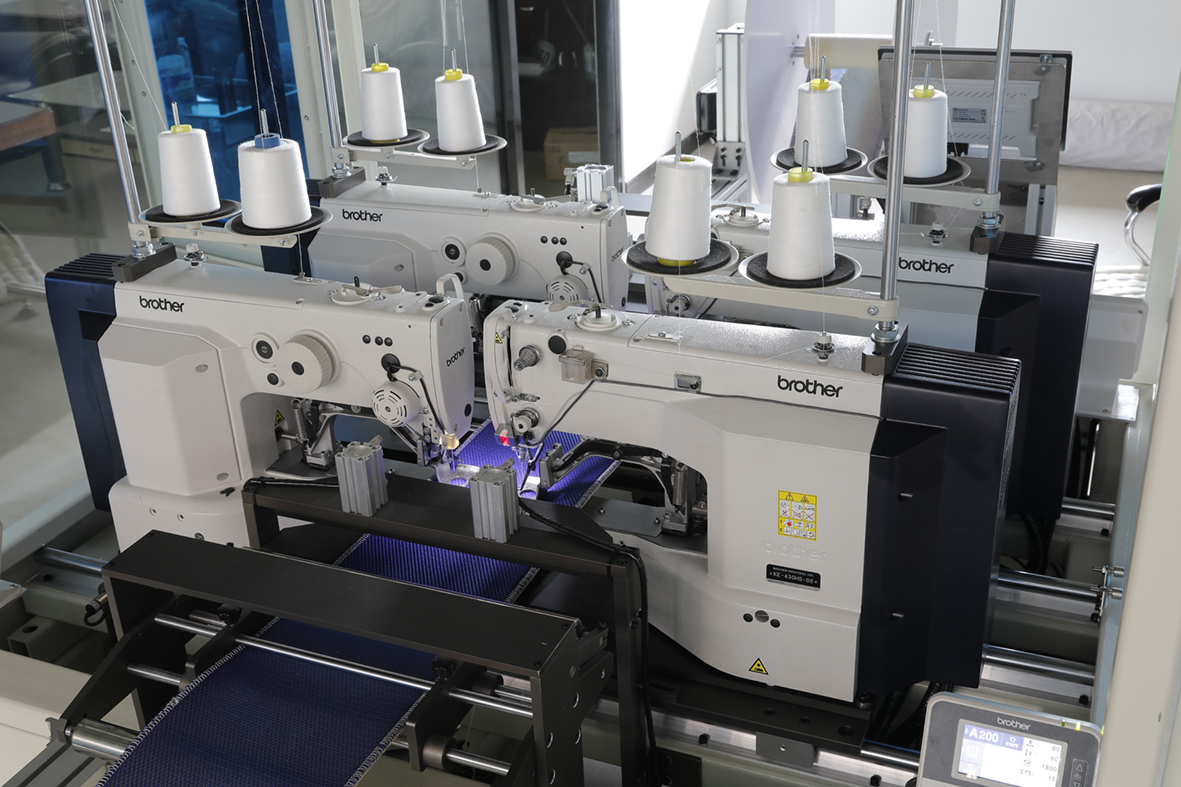

1. The four machine heads can work synchronously or independently;

2. 16-axis fully automatic control, precise feeding, efficient and stable, suitable for mattress edge production requirements.

Customized

Details

Functional Advantages

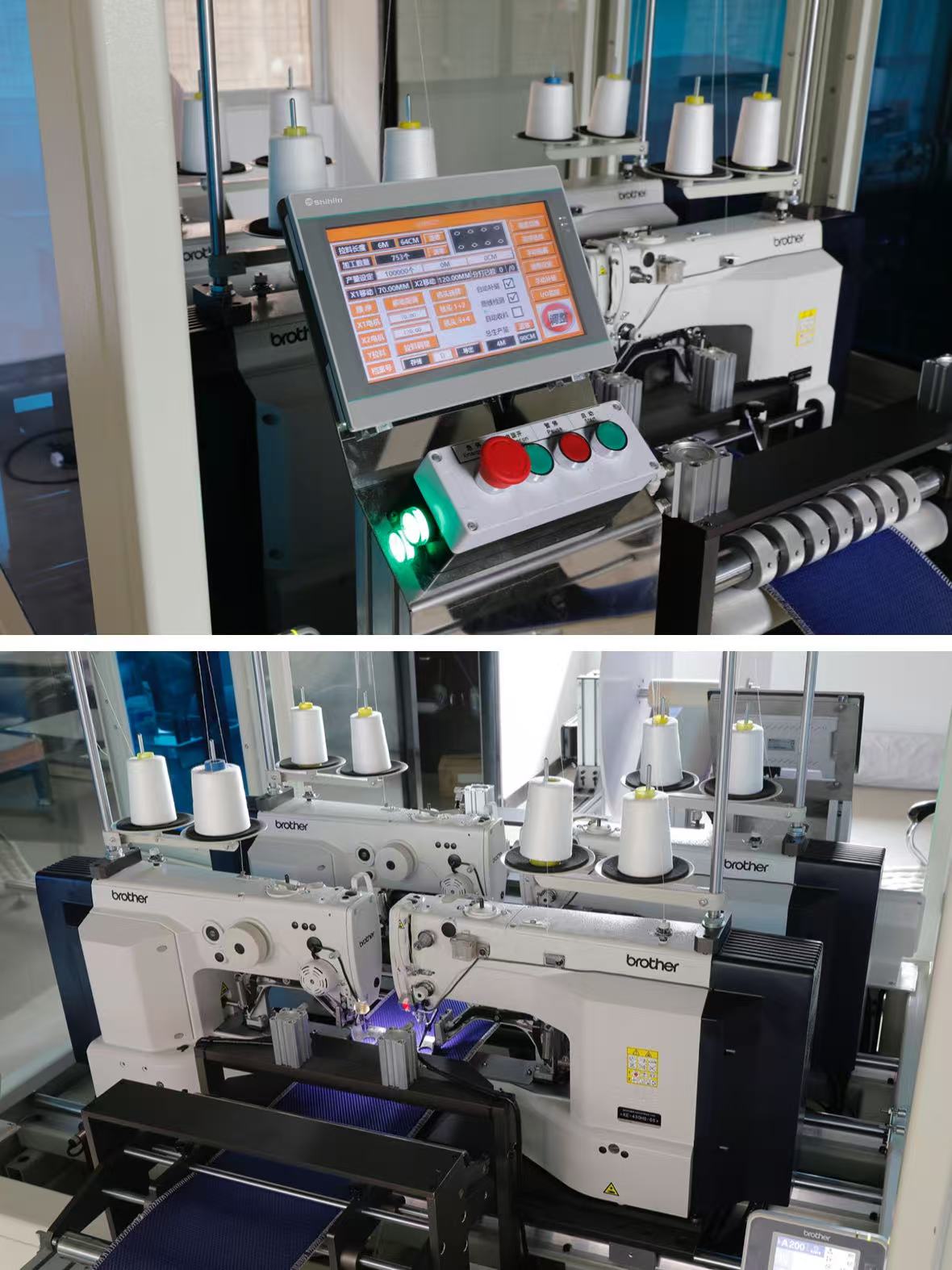

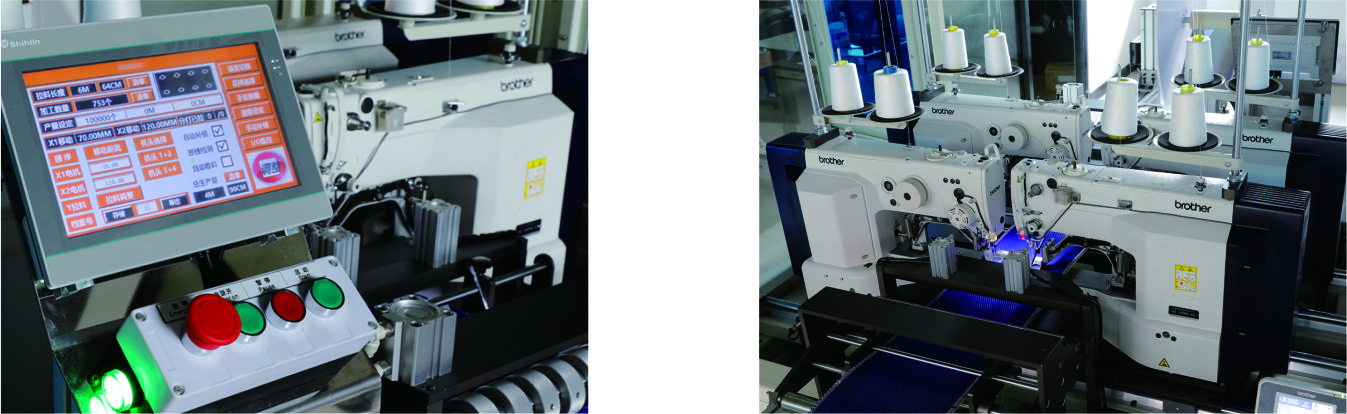

1. The machine head can work simultaneously or independently;

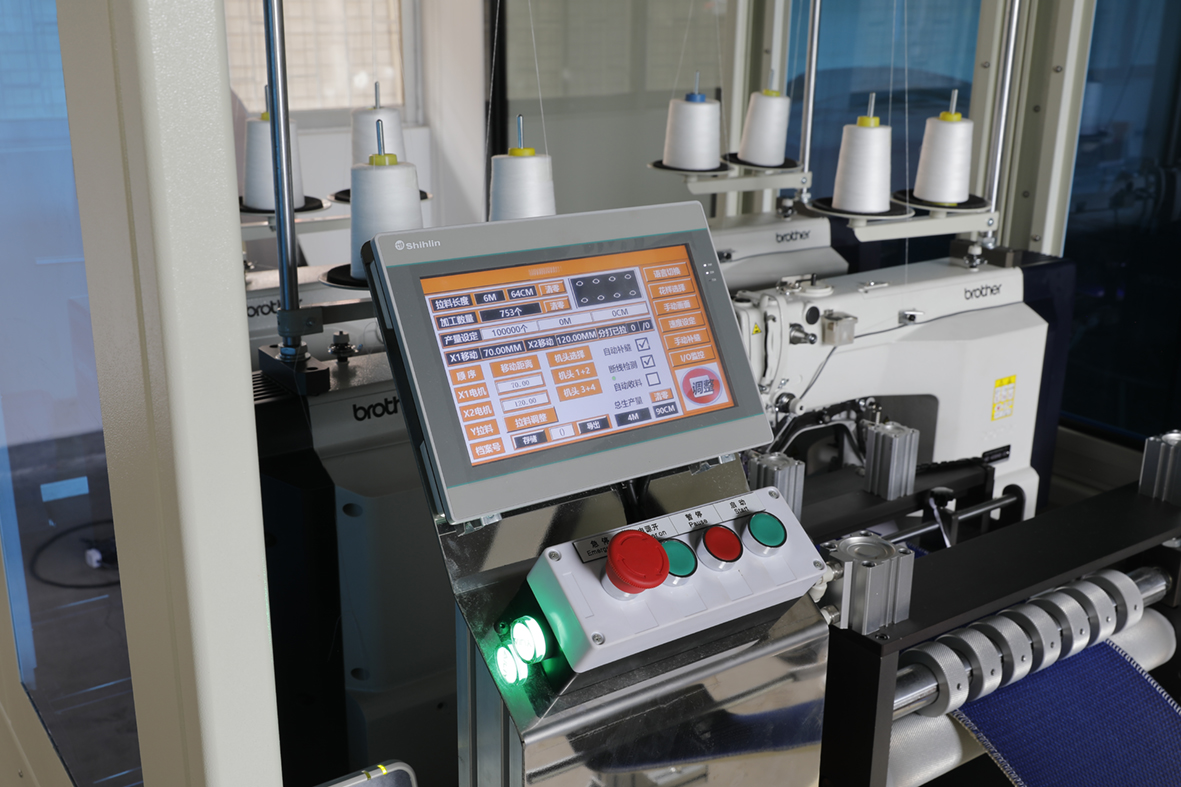

2. Professional control system, programmable design interface;
3. Move left and right, Laura feeds the material;
4. 16-axis fully automatic control, capable of fully automatic operation or independent axis control, high-precision pattern sewing.

Function Parameter

Max. Rotation Speed	2,500RPM
Sewing Thickness	≤35mm
Sewing Width	≤400mm
Power	3kW
Voltage	220V 50HZ

Grouped Equipment

Application Range

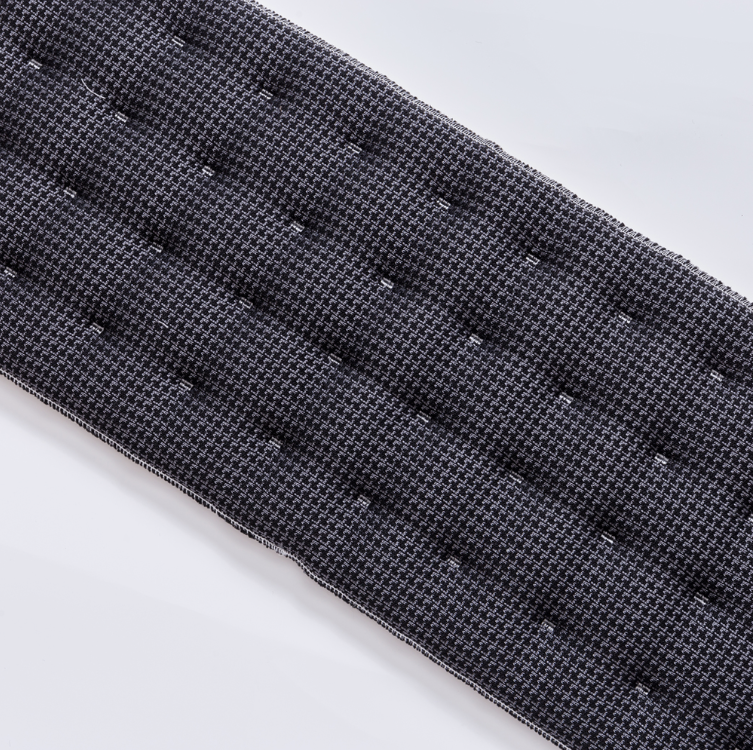

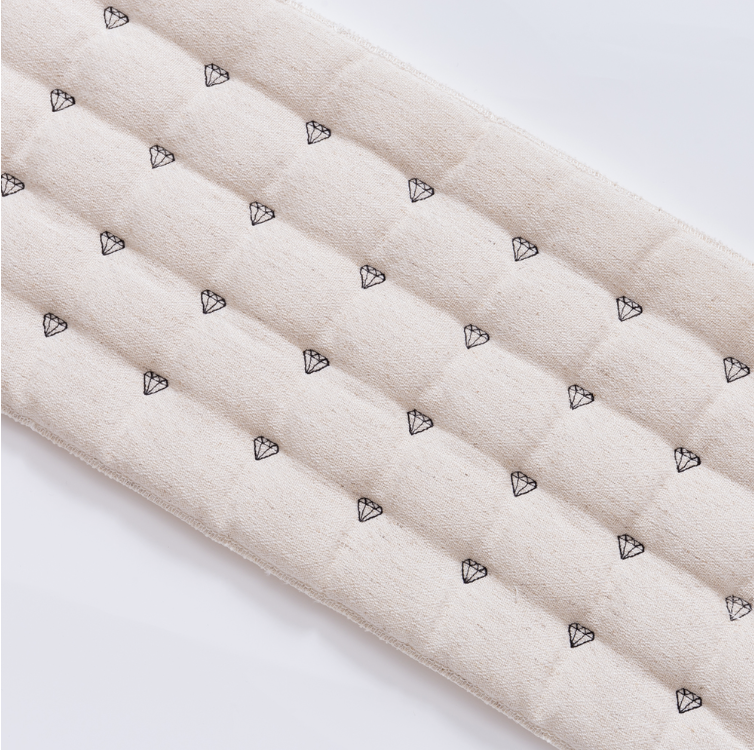

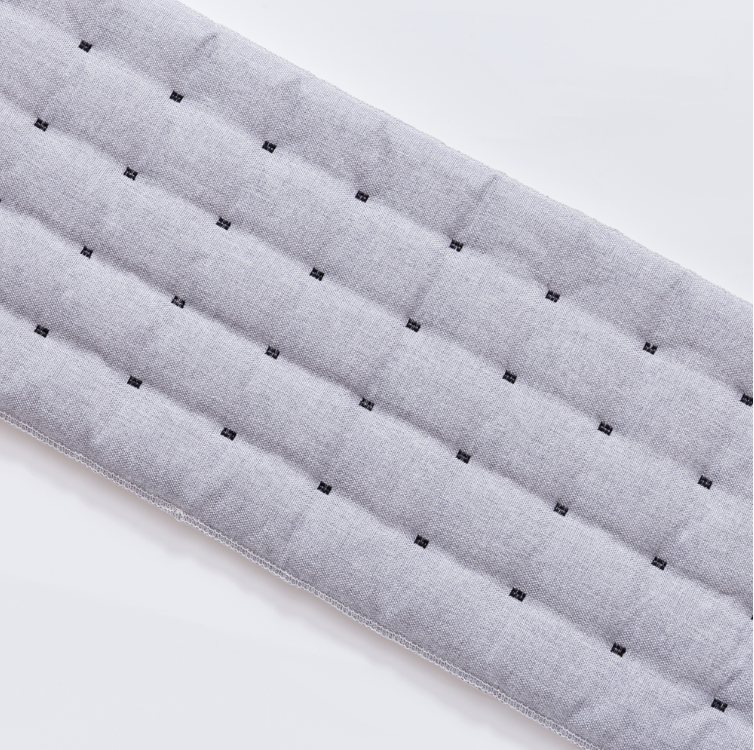

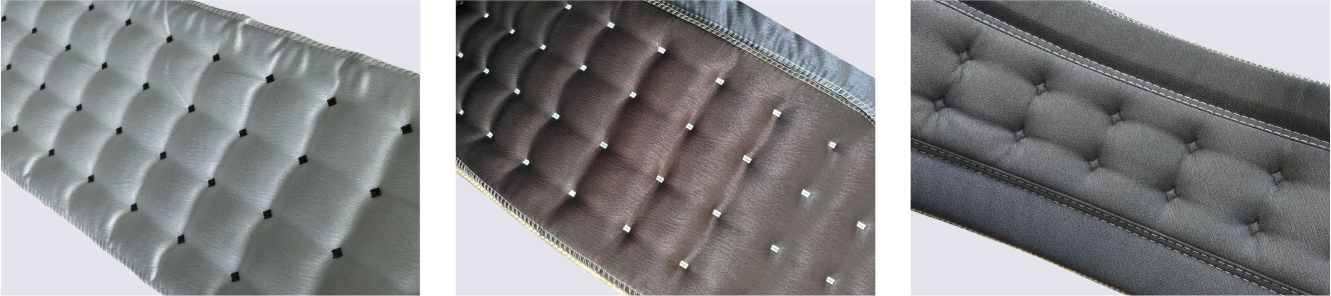

Specifically designed for mattress edge quilting, supports multiple heads working simultaneously or independently, programmable control, efficiently and accurately completes mattress edge pattern sewing.
