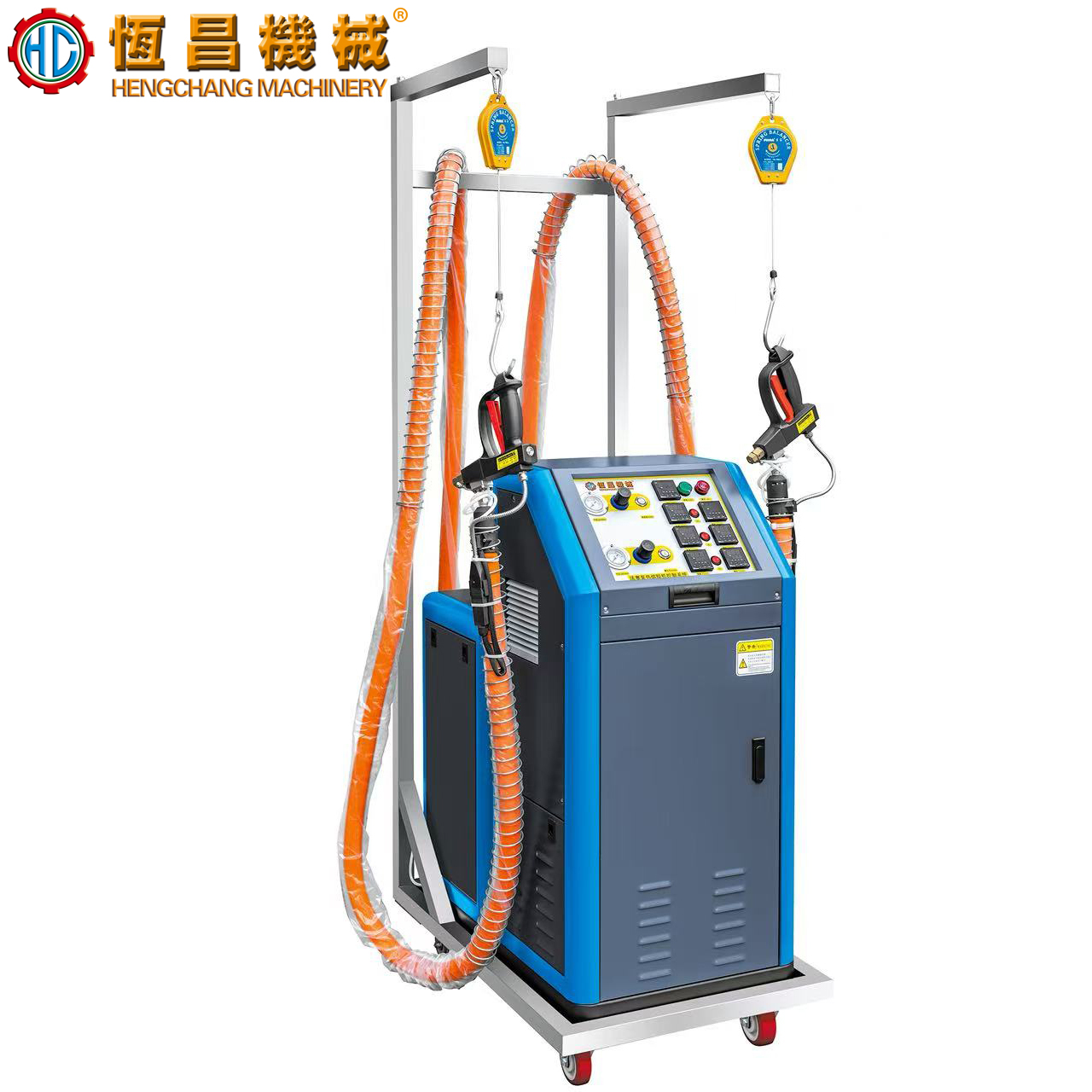

HC-30H Glue Machine

Introduce：
30L glue machine, suitable for various gluing scenarios, with precise temperature control and good heat dissipation and insulation.

1. 30L glue machine are high-capacity hot melt adhesive equipment specially designed for the mattress, home textiles, packaging, and other industries;

2. Equipped with an independent high-precision temperature control system, with a temperature control accuracy of up to ±1°C, and adopting superior heat dissipation and insulation design to ensure the equipment is stable and durable.

Customized

Details

Functional Advantages

1. Independent high-precision temperature control system.
2. Superior design for heat dissipation and insularion.

Function Parameter

Melt Rate	30kg/hr
Application Viscosity (Max.)	20pas
Operating Temperature Range	50-200°C
Temperature Control Accuracy	±1°C
Max. Power	5kW
Main Unit Dimensions (LxWxH)	850x500x1300mm
lncl. Bracket (LxWxH)	950x660x1650mm
Ambient Operating Temperatur	0-50°C
Voltage	220V 50HZ; 380V-N-PE
Air Pressure	0.1-0.6Mpa
Hight-Temp Protection	200°C
Weight	100kg
